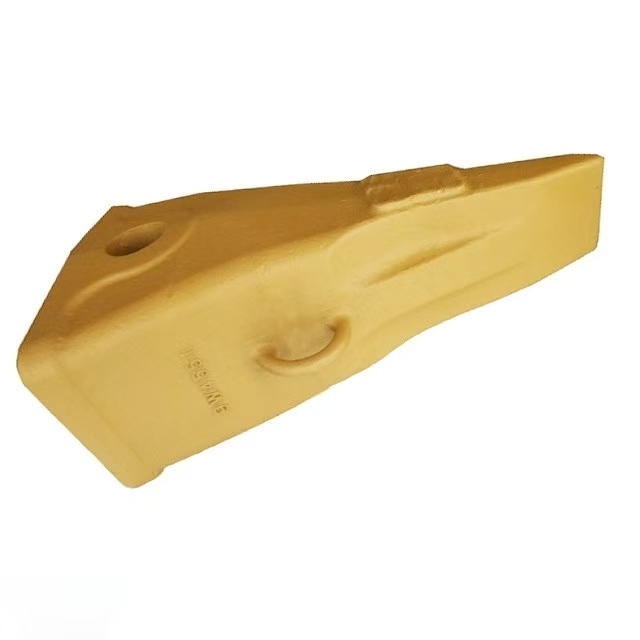

Wheel Loader Parts Ripper Tooth 9W4551 Mini Excavator Bucket Teeth Point

9W4551 Ripper Tooth  — Product Description

Where a ripper works in mixed ground, the 9W4551 Wear Cap Tip covers both penetration and wear. The nose is cast slightly proud of the shank line so the tooth, not the shank, absorbs abrasion, and the body is held at 49-56 HRC through section.

Key Features

• Batch traceability by heat number on every carton
• Straight shank seat face improves contact and reduces rocking
• Consistent pour weight batch to batch keeps machine balance stable
• Symmetrical wear pattern lets the tooth be flipped once before scrap
• Available in penetration, chisel and tiger profiles

Buying Advantages

• 24-hour response on compatibility, price and shipping questions during the working week.
• 12-month warranty and long-term supply commitment for distributors.
• Factory cost structure because melting, casting and heat treatment are all in house, not outsourced to three subcontractors.
• Custom packing to your warehouse rules: pallet height, carton count, label format and barcode standard.

Technical Specifications

Next Step

Request a quotation with your target port and annual volume; we will reply within one working day with pricing, packing options and a production schedule.

Application

Typical duty: heavy rock ripping on single-shank rippers plus secondary breaking, where the tip must survive both abrasion and shock loading.

Quality Control Route

Spectro analysis of the melt, pour temperature log, normalising and tempering cycle record, hardness sampling at three points per batch, dimensional check on the pin hole and nose profile, then visual and shot-blast finish inspection before packing.

Packing and Delivery

Standard export packing is anti-rust paper plus woven bag on a fumigated pallet. For sea freight we add corner protection and steel strapping; for air freight we use double-wall cartons so the tip edge cannot cut through the box.

Fitting Notes 9W4551

Nose width 70 mm, pin hole 24 mm, unit weight 10.0 kg and overall length 435 mm. Supplied bolt-on wear cap as standard, normalise plus temper treatment, 60 pcs per pallet, reference wear life around 350 hours in medium abrasive rock. Lead time 7-15 working days, MOQ 100 pieces.
