Excavator Bucket Teeth 9W8452 Bucket Teeth E330 Construction Machine Spare Parts

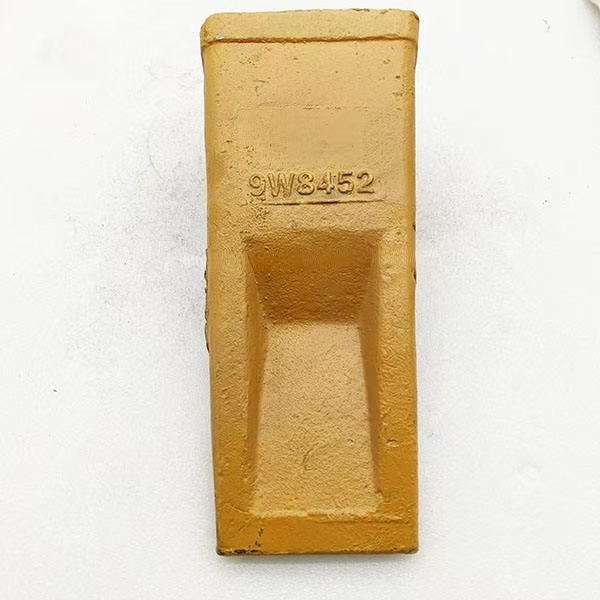

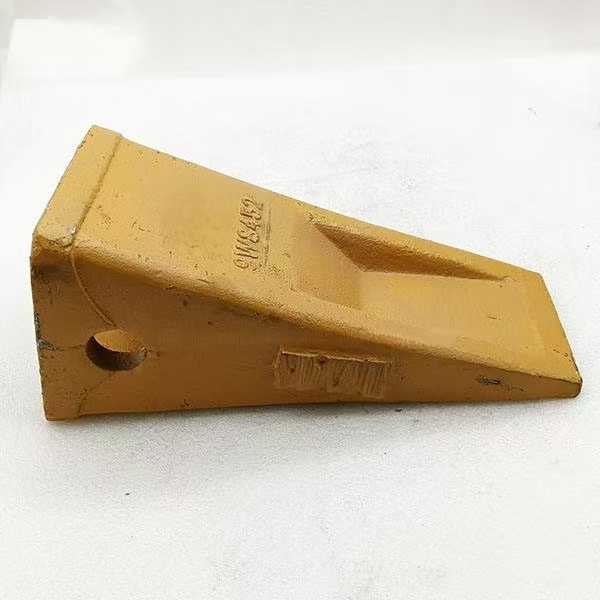

9W8452 Bucket Teeth  — Product Description

The 9W8452 ripper tip pairs a reinforced nose with a slim Tiger Style Tip profile. Cast alloy steel and a 46-53 HRC treated core resist impact cracking as well as abrasive wear.

Key Features

• Nose profile checked on a template every 50 pieces
• Temper cycle logged so hardness repeatability can be audited later
• Dimensional check against the original drawing before packing
• Shot-blasted finish ready for your own paint colour
• Chamfered leading edge shortens break-in time on site

Application

Typical duty: road construction sub-grade ripping, pipeline trench preparation and land clearing, with a good balance between penetration and wear life.

Fitting Notes 9W8452

Nose width 45 mm, pin hole 30 mm, unit weight 13.40 kg and overall length 280 mm. Supplied pin retainer plus washer as standard, normalise plus temper treatment, 100 pcs per pallet, reference wear life around 500 hours in medium abrasive rock. Lead time 7-15 working days, MOQ 50 pieces.

Packing and Delivery

Tooth tips are individually wrapped and separated by cardboard to protect the cutting edge in transit, packed in bags or cartons depending on size, then palletised and strapped for forklift handling. Custom packing specifications are followed exactly as written.

Next Step

Tell us the quantity you consume per season and we will quote a factory price with the packing and labelling you need, including a free sample for fit checking.

Factory Service and Support

• Flexible terms: T/T, L/C, PayPal, Western Union; 30% deposit, balance against copy of B/L for established buyers.
• 50,000 pieces per month capacity across our bucket tooth lines, so repeat orders do not queue behind new projects.
• 7-15 working day lead time on standard items; tooling-based custom profiles quoted separately.
• Factory-direct pricing with no intermediate margin, quoted per piece or per ton depending on how you buy.
• OEM and ODM development with a dedicated engineer for new ripper profiles and wear-cap designs.

Technical Specifications

Test and Traceability

Heat numbers are stamped or tagged, hardness results recorded per batch and retained for two years, and any claim can be traced back to the melt and treatment cycle that produced the part.
