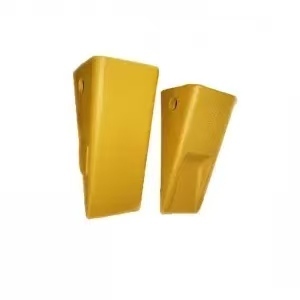

9W8451 9W-8451 Standard Short Bucket Teeth J450 Series Fit

9W8451 Bucket Teeth — Product Description

This 9W8451 Rock Tip is a stock replacement for J450  rippers in quarry and mine fleets. Every casting is poured in a controlled sand mould, normalised, quenched and tempered, then checked on the pin bore before it is allowed into packing.

Key Features

• Tight bore tolerance on the pin hole for a rattle-free fit
• Uniform 47-52 HRC hardness held from surface to core
• Straight shank seat face improves contact and reduces rocking
• Dimensional check against the original drawing before packing
• Through-hardened body instead of a thin case-hardened skin

Application

Typical duty: bulk ripping of hard pan, shale, sandstone and blasted limestone; also used as a wear cap on multi-shank rippers where side wear is the main failure mode.

Supply Chain Support

• Dedicated account engineer for quoting, drawing confirmation and shipping documents.
• Private moulds available when your profile differs from the standard aftermarket shape.
• Sample service: free standard samples, buyer pays freight only.
• One invoice per container across mixed ground engaging tools, which simplifies customs paperwork for importers.

Fitting Notes 9W8451

Nose width 45 mm, pin hole 28 mm, unit weight 15.0 kg and overall length 410 mm. Supplied pin and retainer as standard, quench and temper treatment, 50 pcs per pallet, reference wear life around 350 hours in medium abrasive rock. Lead time 10-20 working days, MOQ negotiable.

Next Step

Send us your machine model or the part number you are replacing and we will confirm the correct ripper tooth, the current hardness specification and the best shipping window for your port.

Technical Specifications

Inspection Before Shipment

Every batch is hardness tested and dimensionally audited against the drawing. Photos of the packed goods, carton marks and the HRC report are sent to you before the container leaves the plant.

Packing and Delivery

Tooth tips are individually wrapped and separated by cardboard to protect the cutting edge in transit, packed in bags or cartons depending on size, then palletised and strapped for forklift handling. Custom packing specifications are followed exactly as written.
