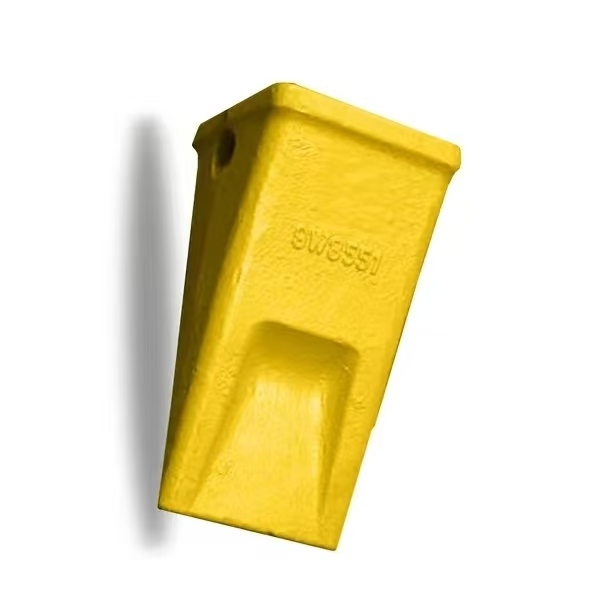

Excavator Spare Parts 9W8551 Bucket Teeth for J550 Excavator

9W8551 Bucket Teeth — Product Description

Built as an independent aftermarket replacement for 9W8551, this ripper tip suits machines. Controlled casting, multi-stage heat treatment and a self-sharpening profile keep ripping cost per cubic meter low in hard pan, shale and blasted rock.

Key Features

• Balanced weight distribution reduces side load on the shank
• Shot-blasted finish ready for your own paint colour
• Available in penetration, chisel and tiger profiles
• Straight shank seat face improves contact and reduces rocking
• Symmetrical wear pattern lets the tooth be flipped once before scrap

Technical Specifications

Fitting Notes 9W8551

Nose width 82 mm, pin hole 24 mm, unit weight 16.0 kg and overall length 330 mm. Supplied pin and rubber lock as standard, double temper treatment, 60 pcs per pallet, reference wear life around 350 hours in medium abrasive rock. Lead time 10-20 working days, MOQ 100 pieces.

Quality Control Route

Spectro analysis of the melt, pour temperature log, normalising and tempering cycle record, hardness sampling at three points per batch, dimensional check on the pin hole and nose profile, then visual and shot-blast finish inspection before packing.

Next Step

Send us your machine model or the part number you are replacing and we will confirm the correct ripper tooth, the current hardness specification and the best shipping window for your port.

Why Buy From Our Factory

• 20 years of OEM and ODM experience for bucket teeth and ground engaging tools; your drawings can become a production-ready casting.
• Free sample for fit verification before you commit to a container.
• Own foundry, not a trading desk — casting, heat treatment, machining and packing happen in one plant in Zhejiang, China, so we control the hardness curve instead of buying it in.
• 24-hour technical reply on part matching: send a photo, dimension sketch or machine serial and we confirm the tooth.

Packing and Delivery

Each tooth is wrapped in anti-rust paper, then packed in export-grade woven bags on a wooden pallet base, or in strong cartons for LCL shipments. Neutral packing is standard; your own carton print, label and pallet marking can be arranged on volume orders.

Application

Typical duty: road construction sub-grade ripping, pipeline trench preparation and land clearing, with a good balance between penetration and wear life.
