Construction Machinery Bucket Teeth Standard Tip 6Y3222 6Y-3222 for Excavator Demolition Ripper Wear Tip

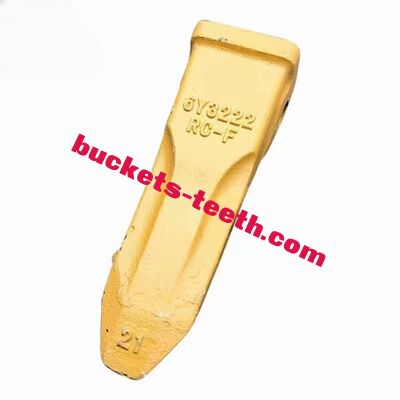

6Y3222 Ripper Tip — Product Description

Our 6Y3222 ripper tooth replaces the original wear tip on E307 rippers without any change to the shank. Deep penetration geometry, tight dimensional tolerance and a 47-52 HRC hardened body give predictable wear life in quarry and mine duty.

Key Features

• Shot-blasted finish ready for your own paint colour
• Standard pin and retainer fixing without shank modification
• Temper cycle logged so hardness repeatability can be audited later
• Balanced weight distribution reduces side load on the shank
• Available in penetration, chisel and tiger profiles

Next Step

Tell us the quantity you consume per season and we will quote a factory price with the packing and labelling you need, including a free sample for fit checking.

Application

Typical duty: bulk ripping of hard pan, shale, sandstone and blasted limestone; also used as a wear cap on multi-shank rippers where side wear is the main failure mode.

Technical Specifications

Packing and Delivery

Tooth tips are individually wrapped and separated by cardboard to protect the cutting edge in transit, packed in bags or cartons depending on size, then palletised and strapped for forklift handling. Custom packing specifications are followed exactly as written.

Fitting Notes 6Y3222

Nose width 58 mm, pin hole 35 mm, unit weight 2.0 kg and overall length 305 mm. Supplied pin and rubber lock as standard, isothermal quench treatment, 100 pcs per pallet, reference wear life around 400 hours in medium abrasive rock. Lead time 15-25 working days, MOQ negotiable.

Test and Traceability

Heat numbers are stamped or tagged, hardness results recorded per batch and retained for two years, and any claim can be traced back to the melt and treatment cycle that produced the part.

Factory Service and Support

• 50,000 pieces per month capacity across our bucket tooth lines, so repeat orders do not queue behind new projects.
• After-sales wear analysis — send photos of worn teeth and we advise on profile or material change.
• Factory-direct pricing with no intermediate margin, quoted per piece or per ton depending on how you buy.
• OEM and ODM development with a dedicated engineer for new ripper profiles and wear-cap designs.
