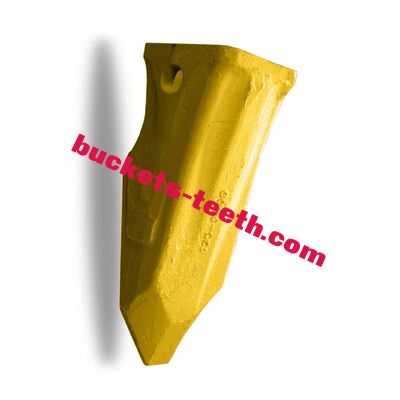

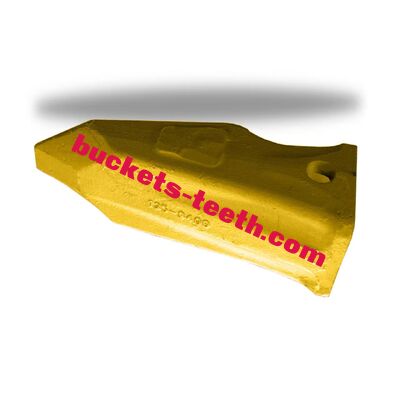

7T3403RP 135-9400 Excavator Bucket Teeth Standard Point Alloy Steel Heavy Duty Fit for J400 System

7T3403RP 135-9400 Bucket Teeth— P roduct Description

The 7T3403 Penetration Tip is the part that sets your cost per ton. At 17.0 kg and 460 mm long it keeps the original shank load pattern while giving a harder 45-49 HRC wear surface than mild aftermarket tips.

Key Features

• Uniform 45-49 HRC hardness held from surface to core
• Shot-blasted finish ready for your own paint colour
• Standard pin and retainer fixing without shank modification
• Straight shank seat face improves contact and reduces rocking
• Hardness tested at three points per batch, report supplied with goods

Next Step

Share a photo of the worn tooth on the shank and we will cross-reference it to this part number, then quote with freight to your nearest port.

Packing and Delivery

Each tooth is wrapped in anti-rust paper, then packed in export-grade woven bags on a wooden pallet base, or in strong cartons for LCL shipments. Neutral packing is standard; your own carton print, label and pallet marking can be arranged on volume orders.

Application

Typical duty: road construction sub-grade ripping, pipeline trench preparation and land clearing, with a good balance between penetration and wear life.

Quality Control Route

Spectro analysis of the melt, pour temperature log, normalising and tempering cycle record, hardness sampling at three points per batch, dimensional check on the pin hole and nose profile, then visual and shot-blast finish inspection before packing.

Supply Chain Support

• Dedicated account engineer for quoting, drawing confirmation and shipping documents.
• Stock programmes for repeat ripper tooth buyers: we hold a buffer of common D6-D11 profiles so a breakdown does not stop a bench.
• 12-month warranty plus a documented claim route if a casting fails early.
• Sample service: free standard samples, buyer pays freight only.
• Private moulds available when your profile differs from the standard aftermarket shape.

Technical Specifications

Fitting Notes 7T3403

Nose width 82 mm, pin hole 24 mm, unit weight 17.0 kg and overall length 460 mm. Supplied pin and rubber lock as standard, isothermal quench treatment, 80 pcs per pallet, reference wear life around 450 hours in medium abrasive rock. Lead time 7-15 working days, MOQ 50 pieces.
