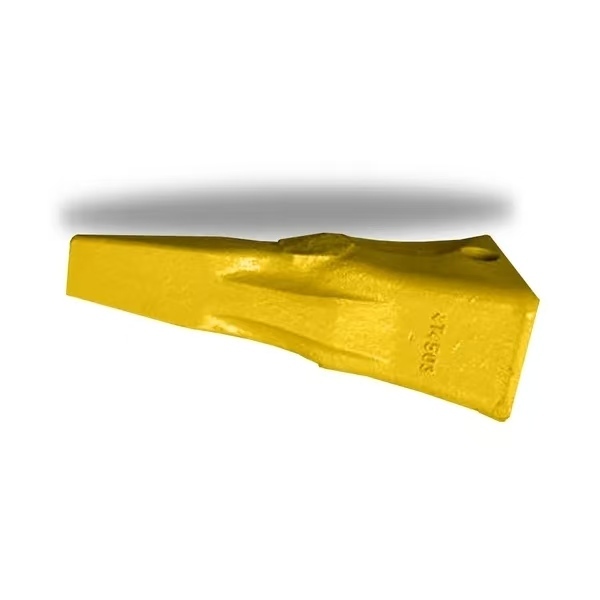

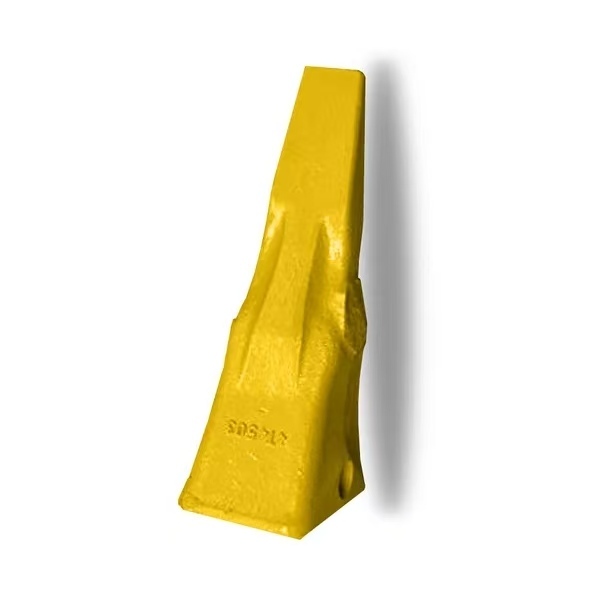

4T4503 Ripper Tooth Point 4T-4503 Bucket Ripper Tooth for D9

4T4503 D9 Chisel Tip — Product Description

The 4T4503 ripper tooth is a direct-fit wear part built for D9  dozers working in abrasive rock. Each tip is cast from high-strength alloy steel, quenched and tempered to a uniform 47-54 HRC core, so penetration stays consistent from the first pass to the last.

Key Features

• Shot-blasted finish ready for your own paint colour
• Hardness tested at three points per batch, report supplied with goods
• Tight bore tolerance on the pin hole for a rattle-free fit
• Balanced weight distribution reduces side load on the shank
• Available in penetration, chisel and tiger profiles

Next Step

Request a quotation with your target port and annual volume; we will reply within one working day with pricing, packing options and a production schedule.

Packing and Delivery

Tooth tips are individually wrapped and separated by cardboard to protect the cutting edge in transit, packed in bags or cartons depending on size, then palletised and strapped for forklift handling. Custom packing specifications are followed exactly as written.

Technical Specifications

Fitting Notes 4T4503

Nose width 52 mm, pin hole 24 mm, unit weight 20.5 kg and overall length 410 mm. Supplied pin and retainer as standard, isothermal quench treatment, 50 pcs per pallet, reference wear life around 300 hours in medium abrasive rock. Lead time 15-25 working days, MOQ 50 pieces.

Why Buy From Our Factory

• Own foundry, not a trading desk — casting, heat treatment, machining and packing happen in one plant in Zhejiang, China, so we control the hardness curve instead of buying it in.
• 20 years of OEM and ODM experience for bucket teeth and ground engaging tools; your drawings can become a production-ready casting.
• 24-hour technical reply on part matching: send a photo, dimension sketch or machine serial and we confirm the tooth.
• Free sample for fit verification before you commit to a container.
• 12-month warranty against casting defects, with replacement shipped in the next production run.

Inspection Before Shipment

Every batch is hardness tested and dimensionally audited against the drawing. Photos of the packed goods, carton marks and the HRC report are sent to you before the container leaves the plant.

Application

Typical duty: frozen ground and compacted overburden in cold regions, where notch toughness matters as much as hardness.
